DUAL TANK, DUAL POLE MOTOR, SHORT RANGE
SKU:
$0.00
per item
This level controllers is suitable for automatically controlling the pump based on water level in the overhead tank and underground tank. This is suitable when there no permanent source of water (or intermittent water supply). The pump is automatically turned on when the level of the water in the Overhead Tank is low and the Level in the Sump is high. The pump is shutoff when the Overhead Tank level reaches high or the Sump level reaches Low. The controller has a dry run detector. The controller shuts off the pump if there is no flow of water, thus protecting the pump from any permanent damage
Features

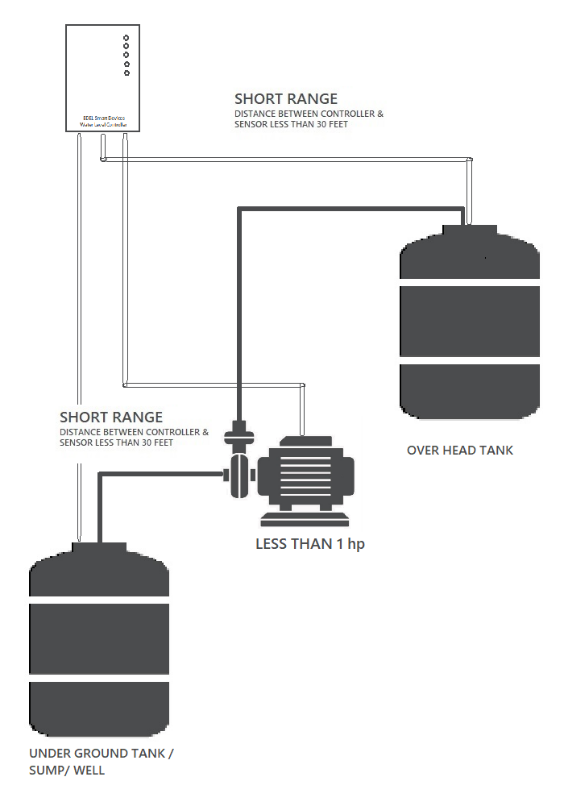

· Suitable for 1 over head tank and 1 Underground tank
· Source of water can be a tank with ball valve
· Dry Run protection if the source runs out of water
· Suitable for less than 1 hp, single phase DP Motor
· Low cost
· Distance of up to 30 feet between Controller and sensor
Features
· Suitable for 1 over head tank and 1 Underground tank
· Source of water can be a tank with ball valve
· Dry Run protection if the source runs out of water
· Suitable for less than 1 hp, single phase DP Motor
· Low cost
· Distance of up to 30 feet between Controller and sensor
