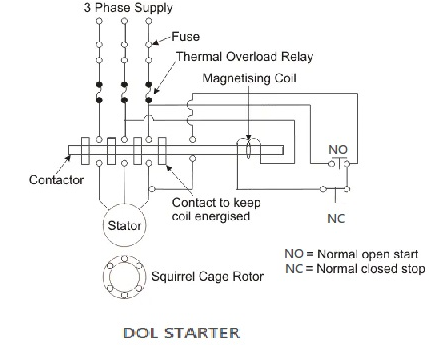

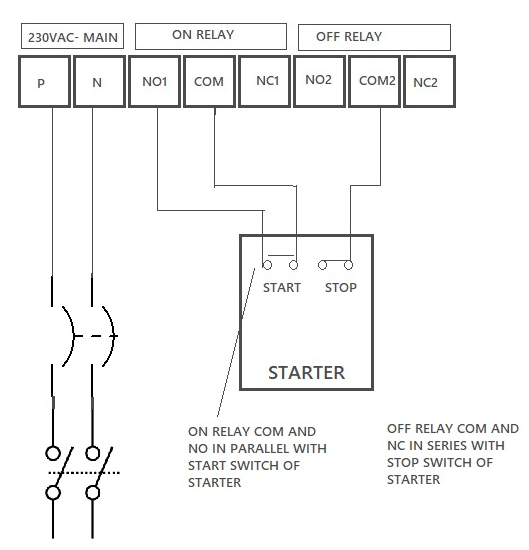

SINGLE TANK, DIRECT ONLINE STARTER MOTOR, LONG RANGE

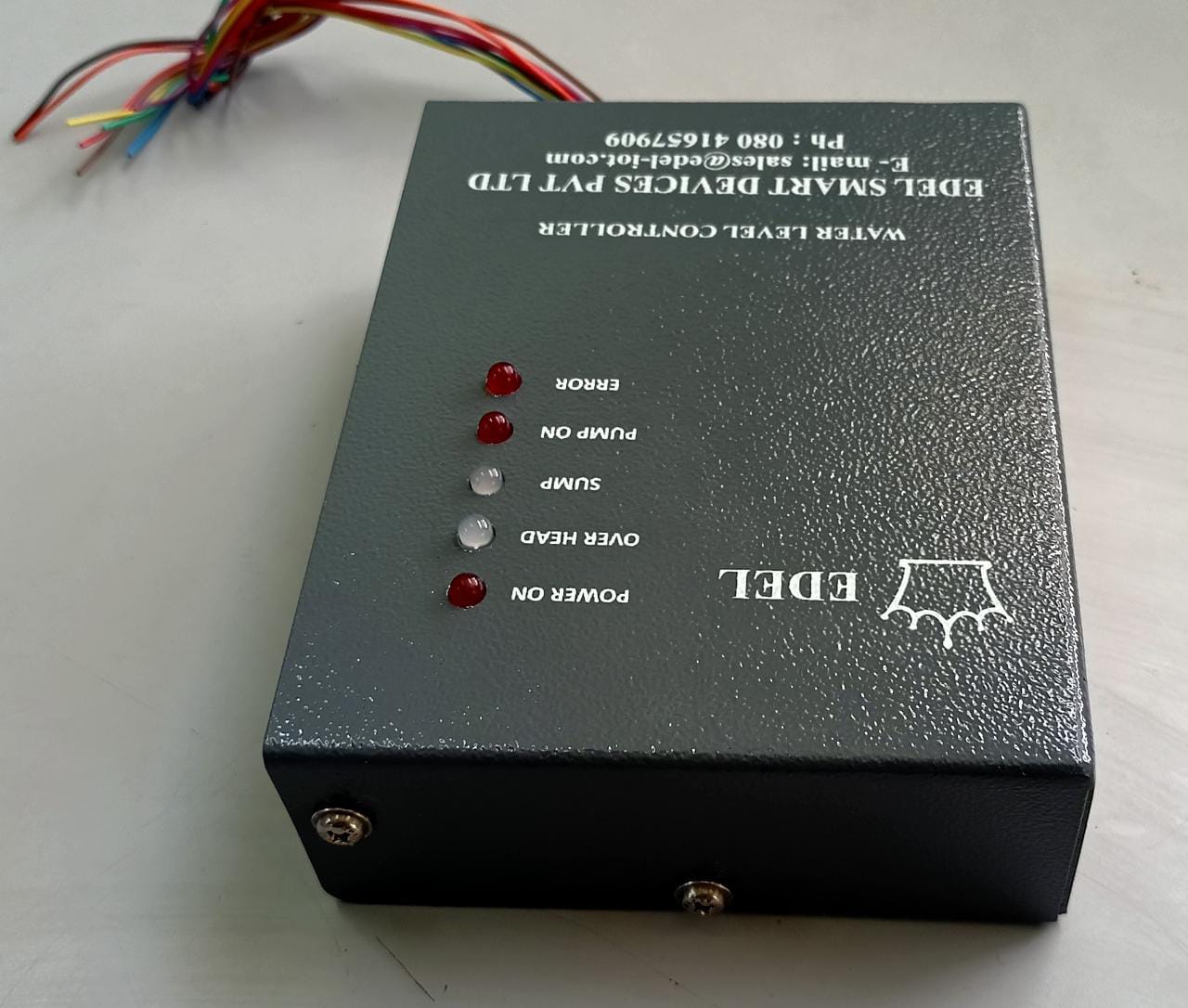

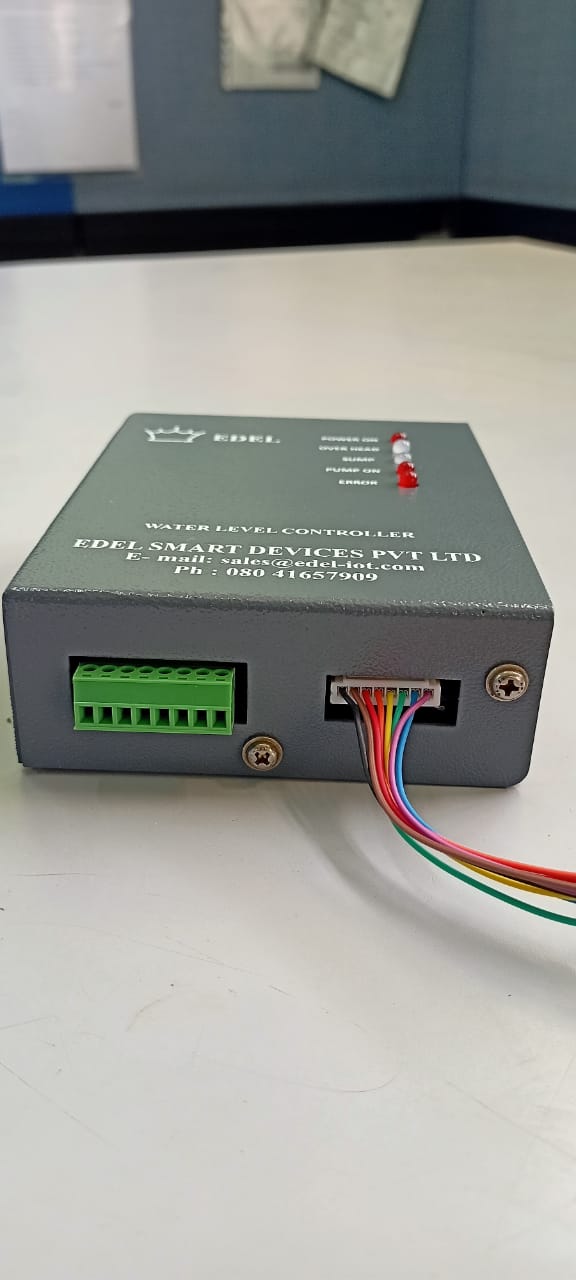

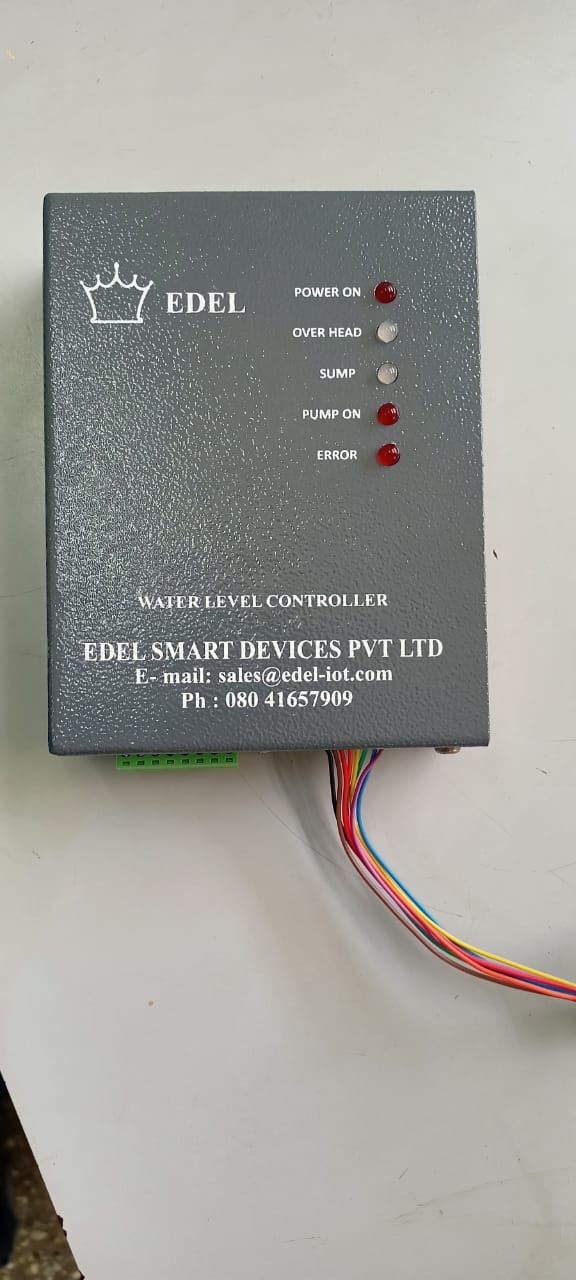

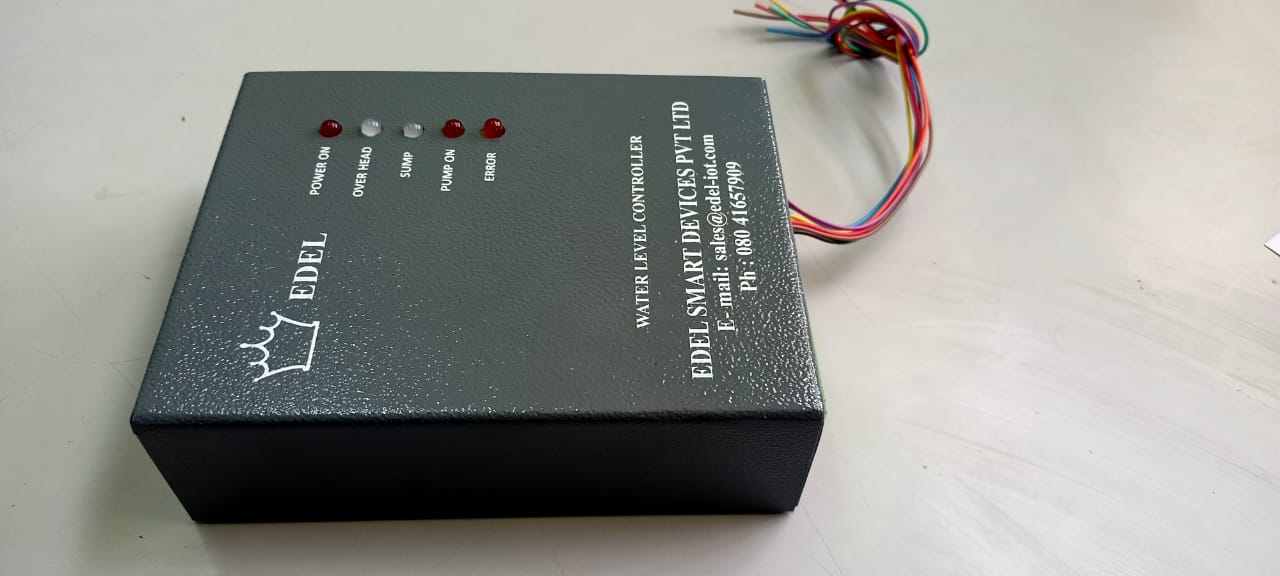

This level controllers is suitable for automatically controlling the pump based on water level in the overhead tank. This is suitable when there is a permanent source of water such as a well/ bore well or an underground tank with a ball valve. The pump is automatically turned on when the level of the water in the Overhead Tank is low and the pump is shutoff when the level reaches high. The controller has a dry run detector. The controller shuts off the pump if there is no flow of water, thus protecting the pump from permanent damage.
Features
· Suitable for 1 over head tank on a high rise building
· Source of water can be a well/ bore well/ tank with ball valve
· Dry Run protection if the source runs out of water
· Suitable for greater than 1 hp, single phase DP Motor
· Distance of up to 150 feet between Controller and sensor
